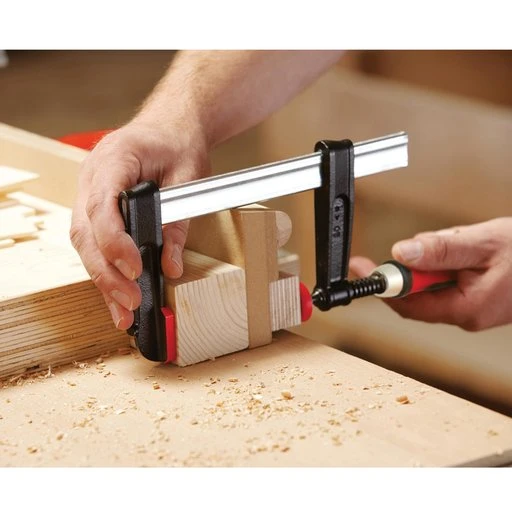

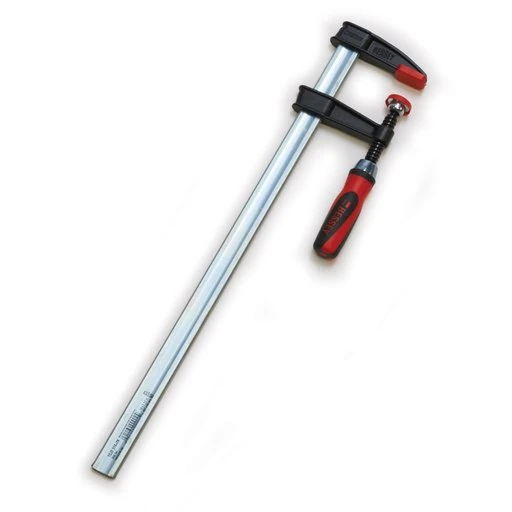

BESSEY 6″ Tradesman Professional Series F-Clamp – 2-1/2″ Throat Depth

This Tradesman Professional Series Bar Clamp has a 6″ clamping capacity, 1″ x 1/4″ rail size, 2-1/2″ throat depth, and nominal clamping pressure of 600 pounds. The Bessey Integrated Anti-Slip System with a set screw that is molded into the sliding arm that interlocks with the serration on the rail to prevent the clamp from slipping. The corrugated malleable cast iron fixed jaw and sliding arm generate powerful, rigid clamping force. Top jaws are fitted to the rail with no mechanical fasteners to loosen up over time while the powder coating protects against corrosion. Then the high quality rail from Bessey’s own German factories. The profile acts as a reliable reinforcement against torsional forces, while the serration on six faces additionally prevents the clamp from slipping. Smooth running spindle with Acme thread provides more clamping with less effort. Finally the pressure plates can be easily changed without tools.
Features:

• High quality galvanized profiled rail
• 2K composite Handle with Comfort Insert
• Integrated Anti-Slip System with a hardened set screw molded into the sliding arm which interlocks with the serrated rail
• Malleable cast iron fixed jaw and sliding arm allow powerful rigid clamping
• The fixed jaw is press fit to the rail with no mechanical fasteners to loosen
• Smooth running spindle with Acme thread provides more clamping with less effort
• Pressure plates can be easily changed without tools

Specifications:

• Model Number: TGJ2.506 2K
• Throat Depth: 2-1/2″
• Rail Size: 1″ x 1/4″
• Nominal Clamping Pressure: 600 lb

What’s Included:

• (1) Bessey – 6″ Tradesman Professional Series F-Clamp – 2-1/2″ Throat Depth
