BESSEY Face Frame Cabinetry Clamp

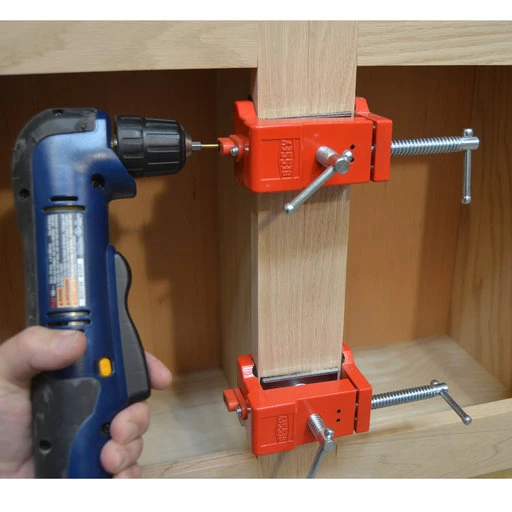

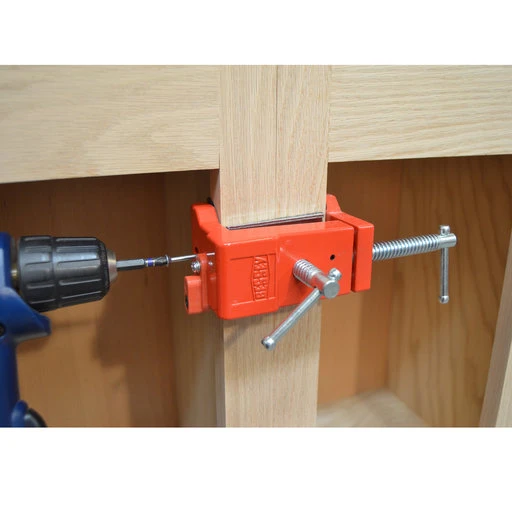

The cabinetry clamp is designed to combine the multiple steps of face frame cabinet installation into one easy process. It works on stiles 1-1/2″ to 2″ and up to 1-1/4″ thick (each). Face frame stiles can be tightened, aligned, pre-drilled and fastened while the clamp is held in place. The clamp holds the individual cabinet edges together while also keeping the faces along the joint flush. There is an integrated pilot-hole drilling guide on one end. This guide flips out of the way so you can drive screws to connect the cabinets without removing or repositioning of the clamp. Professional quality installation is achieved at a fraction of the time compared to the use of more conventional clamps.

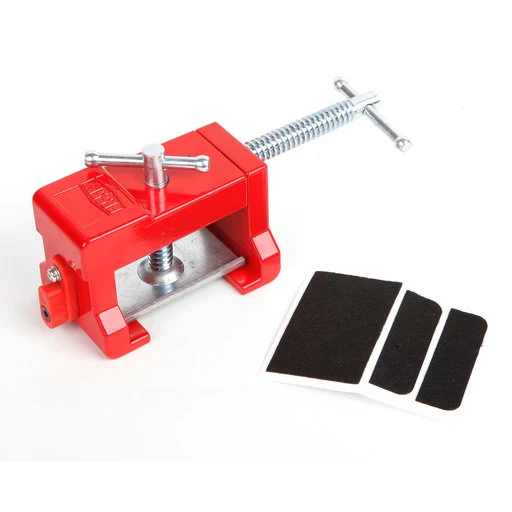

Non-marring felt pads are provided for the clamp faces and the alignment plate to protect and cushion points of contact.
Specifications:
Heavy duty steel clamp with steel sliding T-bars
Aluminum alignment plate
Integrated pilot hole
Holds individual cabinet edges together, plus faces flush
Non-marring felt pads
Jaw width: 2″
Throat Depth: 2″
Maximum opening 4″
Clamping strength 300 -600 lb
Product Dimensions: 7-1/2″ x 2-1/2″ x 3-1/4″
