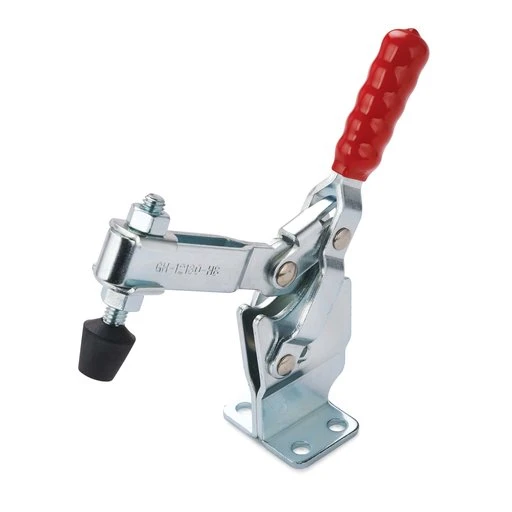

Vertical Handle High Base Toggle Clamp – 2-7/8″ X 1-1/8″ – 500 Lb Capacity

This WoodRiver® Vertical Handle High Base Toggle Clamp can apply vertical clamping pressure with the handle that locks in a vertical/up position. Best used when positioned away from the operator; handle can be pulled up into locking position or pushed back to release. This toggle clamp is a great addition to any table for keeping material in place.

Features:

• Quick clamping action
• Installs on jigs and fixtures or movable bases
• Common uses include securing a piece for sawing, sanding, and drilling
• Provides up to 500 lb of holding capacity

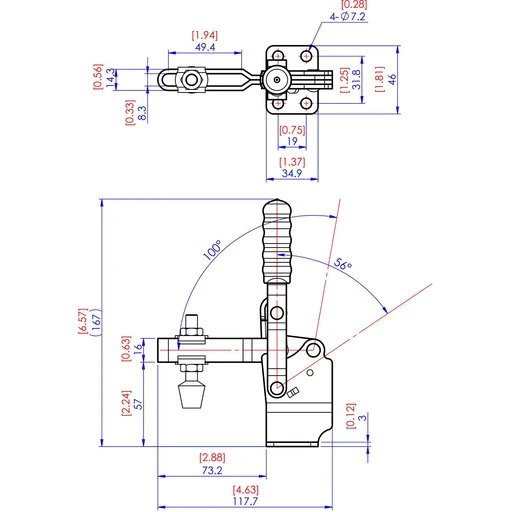

Specifications:

• Arm Length: 2-7/8″
• Base Height: 2-1/4″
• Maximum Thickness Under Foot: 1-1/8″
• Adjustable Rubber Pressure Tip: 5/16″ x 18
• Holding Capacity: 500 lb.

What’s Included:

• (1) WoodRiver® Vertical Handle High Base Toggle Clamp – 2-7/8″ x 1-1/8″ – 500 lb Capacity
